FCX4000
Graphtec electrostatic flatbed cutting table, two sizes (660 × 488 mm / 976 × 660 mm), cutting speed up to 750 mm/s, two simultaneous tools (blade + pen or creasing). For prototyping, packaging, templates and short runs — without investing in a roll-fed cutter.
Combinations available
Check some of theses attributes to see what attribute combination is available
|
Ref: FCX4000-50ES |
Available now |
Ref: FCX4000-60ES |
Available now |
|
|
Ref: FCX4000-50ES-ST0113 |
Available now |
|
Ref: FCX4000-60ES-ST0113 |
Available now |
More info

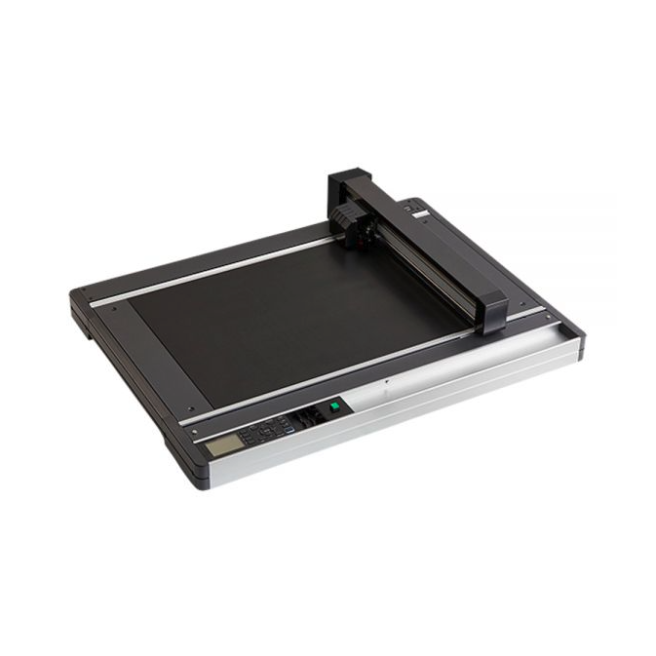

Graphtec FCX4000 — Electrostatic Flatbed Cutting Table
The compact cutting table that turns every prototype, template or short run into a ready-to-use piece — without investing in a roll-fed cutter. Two sizes, two simultaneous tools, precision and a quiet workshop.
| 660×488 / 976×660 mm | Cutting area (50ES / 60ES) |
| 750 mm/s | Maximum cutting speed |
| 600 gf | Maximum cutting force per tool |
| 2 tools | Blade + pen or creasing, simultaneously |
| 0.005 mm | Mechanical resolution |
What the FCX4000 changes in a workshop
A flatbed cutting table serves a different purpose than a roll cutter like the Graphtec FC9000: it handles sheets and boards (cardboard, foam, rigid plastic, rubber) rather than continuous vinyl. It's the tool for packaging mock-ups, masking templates, prototypes and short runs that need to ship fast — without running a large-format machine for a handful of pieces.
Key functions
ARMS — reverse-side registration
Automatically detects print registration marks, including on the back of the media, to cut and crease without ever scratching the printed face.
Simultaneous dual tool
Blade and pen (or PM-CT-002 creasing tool) mounted at the same time: a printed visual becomes a cut and creased piece in a single pass, no tool swap or re-calibration.
Distortion compensation
Automatically corrects deformations that occurred during printing by adapting the cutting path to the actual design rather than the original file.
Matrix copy and expanded cutting area
Multiplies a pattern on the board with 0 mm margin between copies, and cuts beyond the registration marks to use the full media surface.
Standalone operation
Job management by barcode from a USB flash drive, without a continuously connected PC — useful in a shared workshop.
Crack-free curved creasing
The new PM-CT-002 creasing tool reduces peeling and cracking on folds, including curved ones.
Supported media
Applications
Packaging & cardboard
Fold-ready packaging mock-ups, in short runs.
Films & masking
Protective templates, masking film for painting or flocking.
Automotive decals
Wraps and decals cut to the exact shape of the vehicle.
Signage
Panels and markings in short runs.
Industrial masking
Protective templates for surface treatment.
R&D / prototyping
Quick mock-ups and trials before production.
🎬 FCX2000/FCX4000 presentation video: watch on YouTube ↗ (reseller channel, not confirmed as an official Graphtec source — to validate or replace with a Digital-sys video before publishing).
Two sizes available
| FCX4000-50ES | FCX4000-60ES | |
| Cutting area | 660 × 488 mm (≈ 2 A3+ sheets) | 976 × 660 mm (≈ 4 A3+ sheets) |
| Max mountable media (Y-axis) | 536 mm | 708 mm |

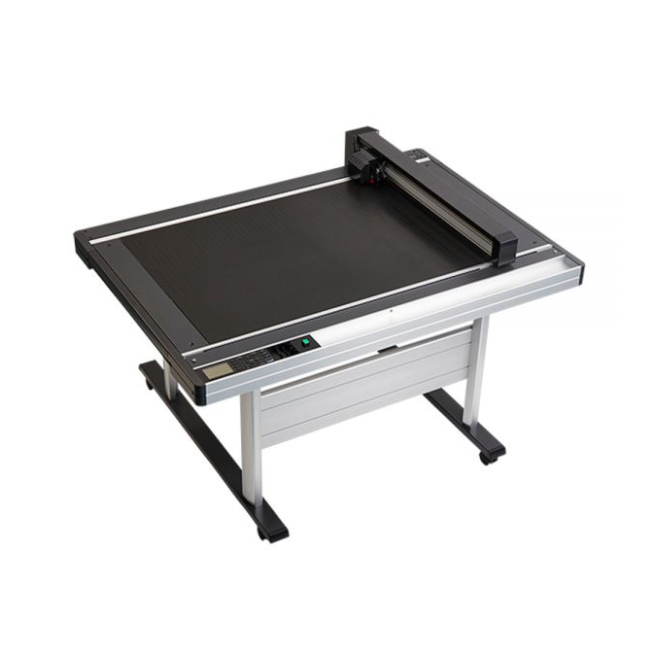

| External dimensions (W×D×H) | 1089 × 897 × 204 mm | 1405 × 1069 × 204 mm (895 mm with stand) |

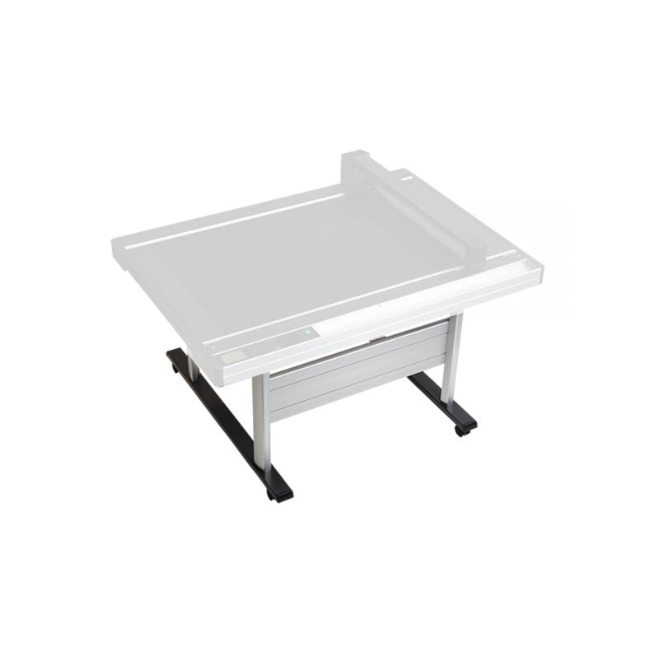

| Weight | 29 kg | 38 kg (55 kg with optional ST0113 stand) |
Technical specifications
| Performance | |
| Max. cutting speed | 750 mm/s (1 to 75 cm/s, 23 steps), all directions |
| Cutting force | Up to 5.88 N (600 gf) per tool, 48 steps |
| Mechanical resolution | 0.005 mm |
| Programmable resolution | GP-GL 0.1/0.05/0.025/0.01 mm — HP-GL 0.025 mm |
| Media hold-down | |
| Method | Electrostatic panel (no suction, quiet operation) |
| Accessory | Optional cling mat for materials less compatible with electrostatic hold-down |
| Tools | |
| Tool holders | 2 simultaneous |
| Blade & pen | Supersteel cutting blade, water-based fiber-tip pen, PM-CT-002 creasing tool |
| Connectivity & control | |
| Interfaces | USB 2.0, RS-232C, Ethernet (10BASE-T/100BASE-TX) |
| Command sets | GP-GL and HP-GL (automatic switching) |
| Display | 240×128-dot graphic LCD (FR/EN/JP/CN) |
| Power & compatibility | |
| Power | 100–240 V AC, 50/60 Hz (auto), max. 120 VA |
| Environment | 10 to 35 °C, 35 to 75% RH non-condensing |
| Operating systems | Windows and macOS (exact versions confirmed at order time) |
| Standards | UL/cUL, CE marking — EMC VCCI Class A, FCC Class A |
Software & ecosystem
✓ Graphtec Studio 2 — standalone design and cutting software (Windows/Mac)
✓ Cutting Master 5 — plug-in for Illustrator and CorelDRAW, cut directly from your usual design software
✓ Registration mark detection and cutting beyond the marks, to use the full media surface
FCX4000 or FCX2000?
The FCX4000 is the compact, quiet size in the range (up to 976 × 660 mm, electrostatic hold-down) — built for a prototyping or short-run workshop. For wider media (up to 1800 × 920 mm) and vacuum hold-down suited to rigid materials, the Graphtec FCX2000 range takes over.
Related products: Graphtec CUTTING PRO FC9000 (large-format roll cutter) — for high-volume continuous vinyl runs, complementing an FCX4000 used for short runs and board.
What Digital-sys adds
We help you choose between 50ES and 60ES based on your production sizes, and between FCX4000 and FCX2000 based on your materials.
Electrostatic panel setup, ARMS calibration, connection to your creative workflow from day one.
Hands-on training on Graphtec Studio 2, Cutting Master 5 and double-sided creasing to make the machine pay for itself from the first pieces.
Blades, creasing tools and cling mats available from Digital-sys, technical support in French, Dutch and English.
Graphtec manufacturer warranty, parts and consumables available from Digital-sys, technical support in French, Dutch and English. Warranty period confirmed on quotation.
