46886605

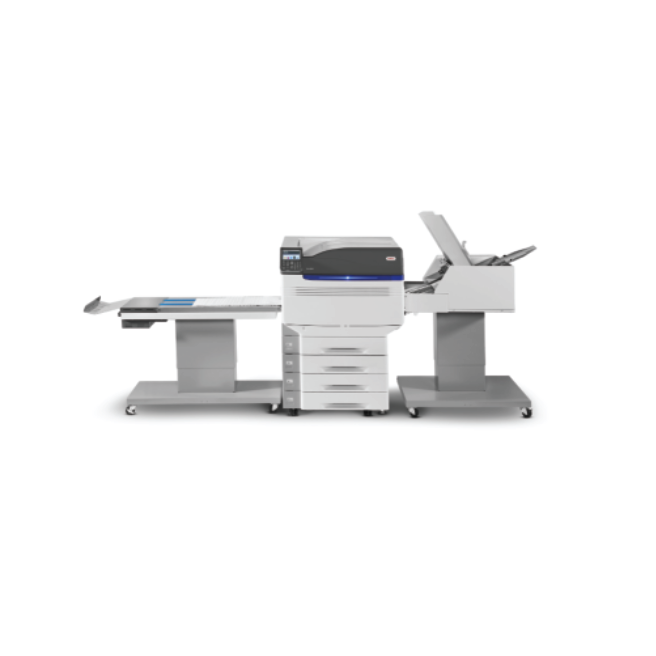

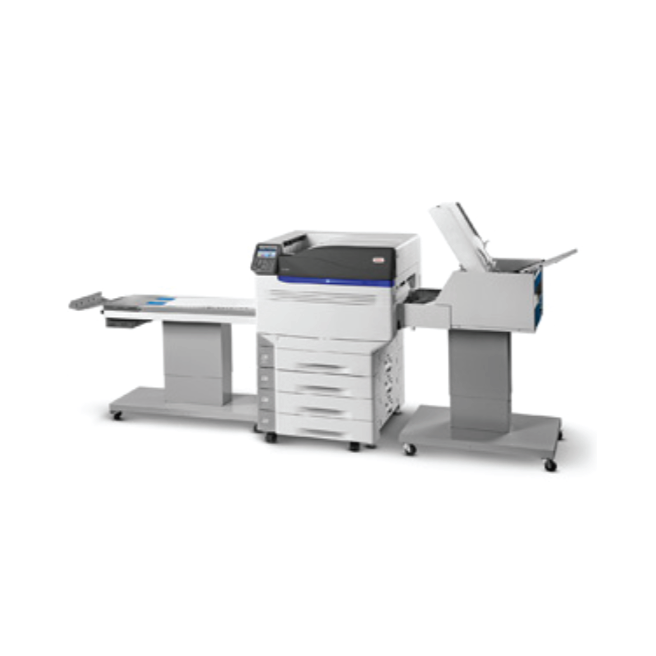

Short runs of custom bags and envelopes are no longer reserved for offset. The Pro9431E pairs an A3+ LED printer with an inclined feeder and a conveyor: load a stack, and the system prints and collects unattended.
- Profitable short runs: no plates and no make-ready, from the very first piece.
- Fast production: up to 500 DL envelopes in about 12 minutes.
- Sharp output: LED technology and ProQ4800 multi-level imaging at 1,200 × 1,200 dpi.
- All your media: white, coloured or textured papers, synthetics, cards up to 360 g/m², 1.32 m banners, duplex as standard. Paired with our cutters and laminators, it also produces stickers, foiled cards and boxes
Data sheet
| Type d'encre | Eco-Solvent TR2 |
| Format d'impression | A3 |
| Interface | 1000BASE-T/100BASE-TX/10BASE-T, USB 2.0 (haut débit) |
| Accessoires inclus | Manuels, cartouches de toner de démarrage (x4), tambours (x4), câble d'alimentation, DVD-ROM, grille d'aération |
More info
AI-generated image, for illustration only.
● ● ● Bags, envelopes and special media
Your custom bags and envelopes, from the very first piece
Coffee, tea, confectionery, seeds, announcements, direct mail: your customers want packaging or envelopes in their own name, in quantities offset turns down. The Pro9431E prints directly onto white, coloured or textured paper bags, pouches and envelopes, and onto synthetic sheets, in full colour and with no set-up costs.
CMYK A3+/SRA3 LED printer at 1,200 × 1,200 dpi, supplied on a cabinet with feeder and conveyor: around 12 minutes for 500 DL envelopes, sheets up to 360 g/m², 1.32 m banners.
Request a demo or a test on your mediaNeed white? See the Pro9541E
~12 min
for 500 DL envelopes
600
DL envelopes in the feeder
1,200 dpi
ProQ4800 LED technology
360 g/m²
maximum sheet weight
● ● ● What the Pro9431E changes for you
A short run is now a profitable order
€
Short runs become profitable
No plates to make, no press to set up: an order for 50 bags starts like an office print job. You say yes to requests under 5,000 pieces, the ones offset finds too expensive.
↻
You load it, it produces
The feeder takes a stack of bags or up to 600 DL envelopes, and the conveyor collects and spreads out the printed pieces. Meanwhile, the operator gets on with other work.
●
Press quality, with LED
The OKI digital LED head and ProQ4800 multi-level technology deliver sharp text and saturated solids at 1,200 × 1,200 dpi.
▣
A full A3+ printer as well
Without the feeding system, the Pro9431E remains a production printer: A6 to SRA3 formats, cards up to 360 g/m², 1.32 m banners and duplex as standard.

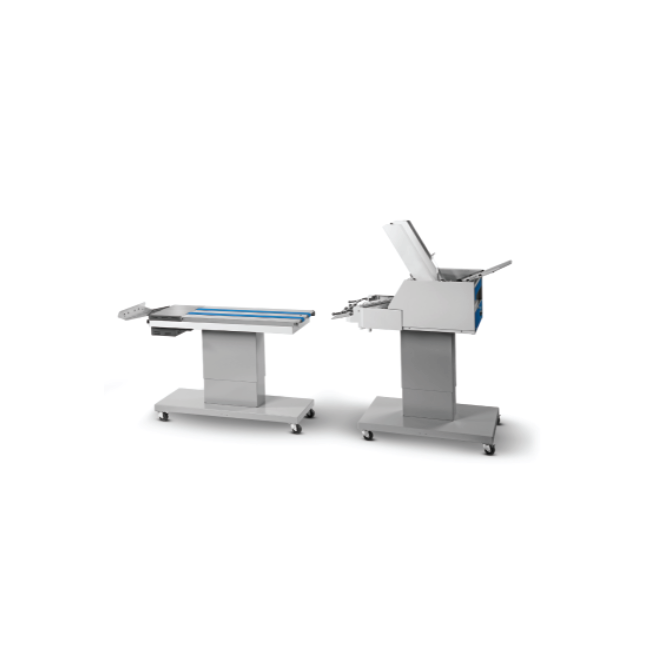

● ● ● The feeding system
A bag is not a sheet
Two to four layers of paper, folds, gussets, glued areas: the Pro9431E comes with three components designed for these media.
The inclined feeder
It separates the pieces one by one. Standard DL, C4, C5, C6 and C7 formats, and any size from 64 × 89 mm to 330 × 382 mm.
The dedicated envelope fuser
It reduces creasing and keeps the print consistent, even on large formats and thick constructions.
The conveyor
It receives the pieces at the output and spreads them out so they do not stick together. It also handles postcards, magnetic media, polyester films and heavy stocks.
Window envelopes are supported. The whole system is mounted on the printer cabinet.
● ● ● Applications
What you will produce
Bags, pouches and seed packets
Coffee, tea, delicatessen, confectionery, garden centres: on white, coloured or textured paper, your logo, a product label or a limited edition, from just a few dozen pieces. Each variety gets its own design, with no plate changes.
Made with: the Pro9431E feeder and conveyor · genuine OKI toners for the Pro9431
Colour envelopes and direct mail
Announcements, invitations, targeted campaigns: each envelope can carry a different name, address, barcode or QR code.
Made with: the PostScript driver or the optional RIP for variable data
Cards, announcements and gift boxes
Business cards, announcements and invitation cards on graphic papers up to 360 g/m², with a velvet soft-touch feel and hot foil on text printed in black. Board sleeves and gift boxes, cut and creased: you approve the design with your customer on the very machine that will produce the run.
Made with: DI-Pro, Color Copy or Clairefontaine DCP papers · lamination films and hot foils · Intec ColorFlare laminator · Invercote G board and Intec ColorCut SC7100 Pro-T cutter-creaser
Labels, stickers and synthetic media
Contour-cut stickers, product labels, menus and tear-proof plant labels: on self-adhesive paper or on water- and grease-resistant polyester synthetics.
Made with: Vulcan Labelstock self-adhesive paper · App Factory Expert synthetics · Vulcan SC-350 cutter · Secabo SC30 II cutter
● ● ● Our experts' view
Full colour on dark media, thanks to white toner!
On black envelopes, dark-coloured papers or brown bags, the OKI Pro9542E and Pro9541E lay down a white toner underbase beneath the CMYK: your colours stay vivid, whatever the background. The Pro9542E prints white and colour in a single pass; the Pro9541E also offers clear toner, for your spot varnish effects. On white papers and light media, the Pro9431E lays down its four colours directly, with sharp, saturated solids.
Your media, tested before you decide
Papers, synthetics, bags and envelopes vary from one supplier to another: coating, thickness, gluing. Send us yours: we print them on the Pro9431E and show you the result, settings included.
● ● ● Software and workflow
From file to print, with no unnecessary steps
✓ PCL and PostScript 3 drivers, direct PDF printing, XPS
✓ Variable data: mail merge and resident barcodes (EAN, Code 128, QR code, PDF417)
✓ Optional RIP: EFI Fiery Pro9000 server or Harlequin DirectPrint, with PANTONE libraries
✓ Automatic colour balance and registration, automatic media detection
● ● ● Key specifications
Technical data
| Printing | |
| Technology | OKI digital LED, ProQ4800 multi-level |
| Resolution | 1,200 × 1,200 dpi |
| Colours | CMYK (four-colour) |
| Speed | A4: 50 ppm · A3: 28 ppm |
| Envelopes | 500 DL in ~12 min |
| First page | 8 s |
| Bags and envelopes (feeder + conveyor) | |
| Standard formats | DL, C4, C5, C6, C7 |
| Custom size | 64 × 89 to 330 × 382 mm |
| Envelope weight | 75 to 120 g/m² |
| Feeder capacity | up to 600 DL envelopes |
| Sheets | |
| Formats | A6 to SRA3 (330 × 457 mm) |
| Banners | up to 1,321 mm |
| Media weight | up to 360 g/m² · 320 g/m² duplex |
| Capacity | 530 + 300 sheets, up to 2,950 |
| Duplex | standard |
● ● ● To complete your workshop
From printing to finishing, all from Digital-sys
The Pro9431E is the heart of a complete production line. Media, consumables and finishing machines: we supply them, install them and set them up together.
Consumables
High-capacity toners: up to 51,000 pages in black and 42,000 pages in colour (A4, ISO coverage). 40,000-page drums, 150,000-page belt and fuser.
Lamination films and hot foils
Gloss, matt or soft-touch lamination and hot foil stamping for your cards, with an Intec ColorFlare laminator.
Print media
Vulcan Labelstock SRA3 self-adhesive paper
Matt or gloss, for your stickers and product labels.
DI-Pro, Color Copy and Clairefontaine DCP graphic papers
Colour laser papers for cards, announcements, flyers and covers.
Invercote G board
Rigid multi-layer board for sleeves and gift boxes, suitable for lamination and foiling.
App Factory Expert tear-proof synthetics
Water- and grease-resistant polyester: menus, plant labels, race bibs.
Related machines
Automatic cutting of SRA3 stickers and labels, with camera and QR code reading.
Contour cutting up to 350 g/m², 300-sheet feeder.
Intec ColorCut SC7100 Pro-T
Cutting and creasing of board packaging up to 450 µm and kiss-cutting of labels, on the same machine.
Intec ColorFlare
Lamination and foiling, to add soft-touch and metallic effects to your prints.
OKI Pro9542E and Pro9541E
The same system in 5 colours: white toner under the colour (Pro9542E), white or clear (Pro9541E).
See also all our finishing machines.
● ● ● What Digital-sys adds
More than a printer: a workshop that runs
01A test on your media before you buy
Send us your papers, synthetics, bags and envelopes: we run them on the machine and show you the result.
02Complete installation
Printer, cabinet, feeder and conveyor are assembled, set up and commissioned at your premises, together with the finishing machines you have chosen.
03Training focused on profitability
Media settings, loading, file and variable-data preparation: your operator is productive from day one.
04Consumables and local support
Toners, drums, wear parts and print media, and a Belgian technical contact who knows your machine.
OKI manufacturer's warranty of up to 3 years, provided the machine is registered within 30 days of purchase (through an authorised reseller).
● ● ● Bags, envelopes and special media
Ready to personalise your bags and envelopes?
Send us a sample of your media: we print it on the Pro9431E and advise you on the right configuration for your volumes, finishing included.
Digital-sys SRL · Achêne, Belgium · OKI distributor
Photos for illustration only.
