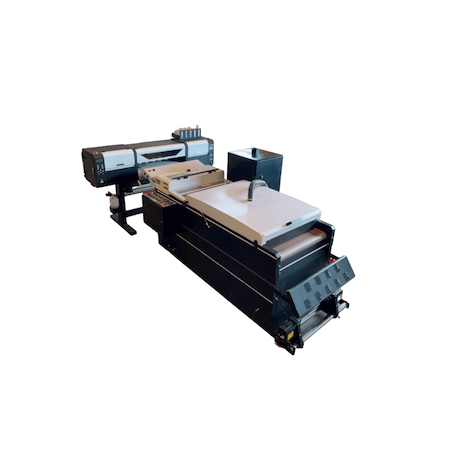

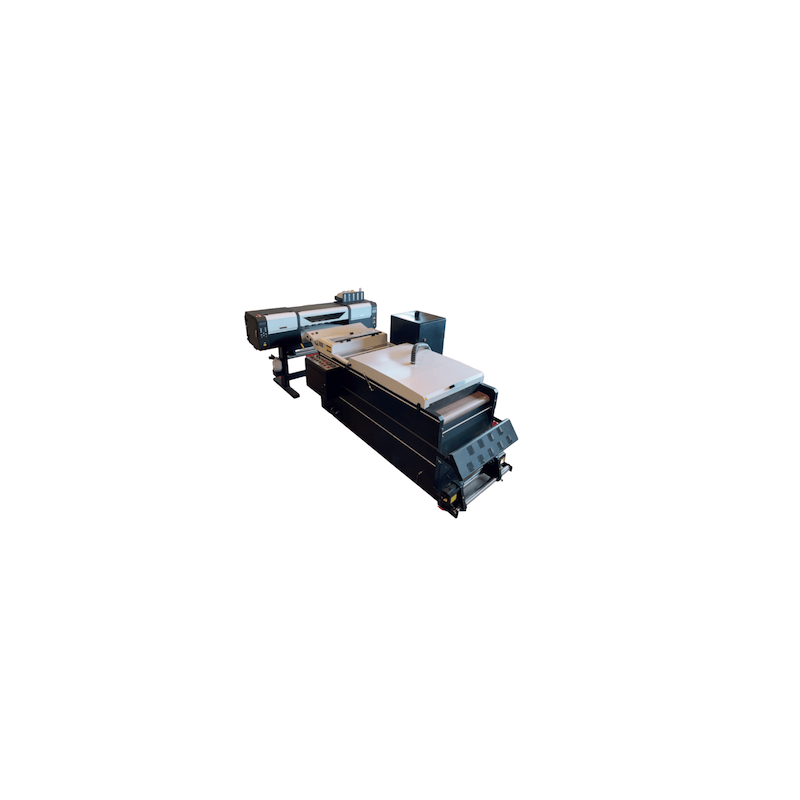

RS PRO 650T DTF Printer

DTF RS PRO 650T printer uses 4 Epson I3200 printheads and equipped with automatic powdering/baking/cooling/winder unit. It allows you to quickly produce high quality textile transfers on rolls up to 61 cm wide!

The high-end components and technologies equipping this printer make it a safe bet, capable of working continuously more than 12 hours a day, 7/7.

The textile transfers produced are incredibly flexible, fine and pleasant to the touch!
You can apply your transfers to many types of textiles: cotton, polyester, cotton/polyester, jeans, canvas, artificial leather and so on.

We no longer present the DTF, the advantage of digital without weeding, at very advantageous costs!

2 possibles configurations :

- 2xCMYK + 2xWWWW

-CMYK + Fluo CMYK + 2xWWWW

The operation…

The RS Pro 650T consists of a 4 color pigment printer (CMYK) which prints in mirror image on a transparent PET film. To ensure that the transfer is opaque, the printer also prints in white. The printed film then goes through a powder coater, where hot melt powder adhesive is applied to the film, in the next step the assembly is dried in a drying tunnel and winding wraps the final product .

The RS Pro 650T system consists of the following components:

• Two original Epson i3200 printheads
• The drying tunnel has a double drying system and therefore the ink is dried very well.
• The printheads are protected by the anti-crash system
• Top and bottom capping station
• The temperature can be set very precisely using a touch screen.

Benefits …

Of course, the speed of production, the simplicity of the system, the flexibility and the low cost the most important advantages but there are many more advantages to mention;

• Easy to use
• High production speed of 10 to 12 m/h
• Textiles (cotton, polyester, cotton/polyester blend) are transferred from 135 degrees and with a pressing time of 6 to 8 seconds.
• Canned ink system for large productions
• White ink circulation system
• Washable up to 40 degrees

The advantages over printable flex

• No need to cut the outline after printing
• Peel transfers are no longer necessary
• No transfer tape needed to apply transfer to fabric
• No waste

Advantages over DTG

• No need to pre-treat textiles
• Can be used on standard white and black t-shirts
• Production speed
• Reduction of investment and production costs

The advantages over screen printing

• Gradient four-color printing
• No chemical ink
• You no longer need to use and clean screen printing frames
• Fewer production steps and therefore faster
• Screen-printed transfers need to be pressed longer at a higher temperature
