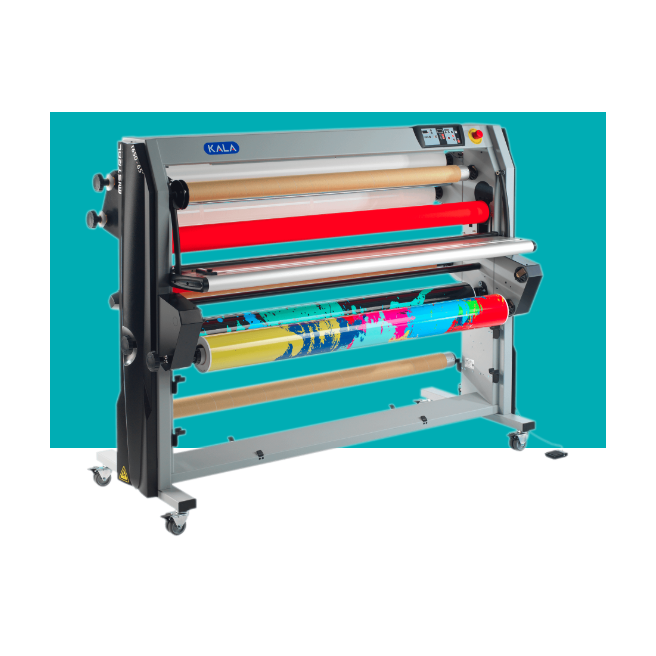

KALA - Mistral 1650 Laminator with double feed for large format printing KALA - Mistral 1650 Laminator with double feed

⚡ MISTRAL 1650 – DUAL FEEDING – The laminator built for maximum productivity 🚀

Designed and manufactured in France 🇫🇷, the MISTRAL 1650 Dual Feeding is a high-performance professional laminator, perfect for high-volume production environments or frequent roll changes.
With its exclusive dual feeding system, up to four rolls can be ready to use in seconds — saving operators time and effort while boosting production speed 💪.

Equipped with a heated top roller (30–60 °C) and Kala’s patented self-calibration system, the MISTRAL 1650 Dual Feeding ensures consistent and even pressure, delivering flawless results on all types of media — films, vinyl, paper, and polyester.

📋 Key Features

• 🔥 Heated top roller from 30 °C to 60 °C for smooth, uniform lamination

• 📏 Working width: 165 cm (65”)

• ⚙️ Roller opening: 50 mm (2”) – handles substrates up to 5 cm thick

• 🚀 Adjustable speed up to 6.5 m/min

• ♻️ Dual feeding system – four rolls ready to use for maximum efficiency

• 🧠 Kala self-calibration system for automatic pressure control

• 🧩 Adjustable pressure depending on the media

• 🔋 Manual or roll-to-roll feeding for flexible operation

• 🧾 Compatible with eco-solvent, latex, offset, and screen printing

💡 A complete and versatile finishing solution
The MISTRAL 1650 Dual Feeding allows lamination, double-sided encapsulation, mounting, and application tape in a single pass.
Its ergonomic design and exclusive technology make it a reliable, autonomous finishing station, perfectly suited for both large-scale production and daily finishing tasks.

✨ Included Accessories & Available Options

• 💡 LED lighting for perfect visual control

• ⚡ Magnetic anti-static cord to discharge static electricity

• ✂️ Inline Cutting System (ILC) with two indexable cutting heads

• ⚖️ Gas lift assist for safe and smooth table lowering

• 🧭 Graduated auto-locking shafts for quick and precise roll loading

• 🎮 Remote control for distant operation convenience

🔧 Technical Specifications

• Max document + substrate thickness: 50 mm (2”)

• Working width: 165 cm (65”)

• Speed: 0.3 to 6.5 m/min

• Temperature: 30–60 °C (7 min to heat to 40 °C)

• Supplied shafts: 7 auto-locking + 1 take-up bar

• Net weight: 230 kg

• Power: 1,800 W – 230V / 110V

• Warranty: 2 years

• CE certified – Made in France 🇫🇷

💬 MISTRAL 1650 Dual Feeding represents Kala’s innovation in efficiency, reliability, and productivity.
A unique model on the market, designed to simplify roll changes, speed up finishing, and optimize your production workflow.
