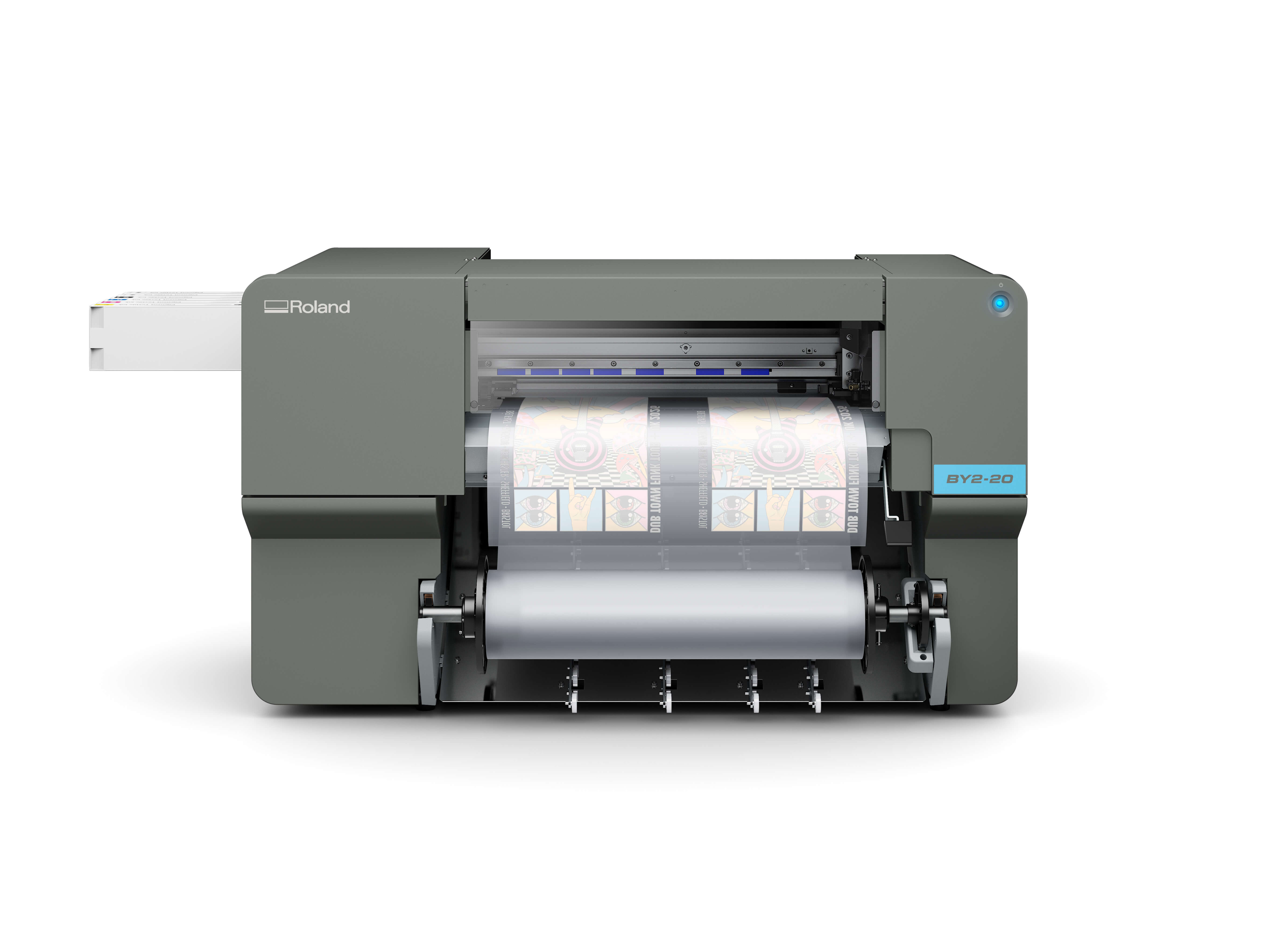

Roland VersaStudio BY2-20: The New Benchmark in Compact DTF Printing with Integrated Cutting A Desktop DTF Printer Built for Production Stability, Print Quality and Profitability

Print data preparation

Prepare your print data by adding a white base layer to CMYK images using Roland DG Connect Designer or VersaWorks. These included tools allow precise file configuration and ensure the correct structure before moving on to print production.

Printing on film

Print the design onto Roland DG DTF film using S-PG2 CMYK and white inks. The image is printed onto the film in reverse, then moves directly to powder application while the ink is still wet, supporting an efficient DTF workflow.

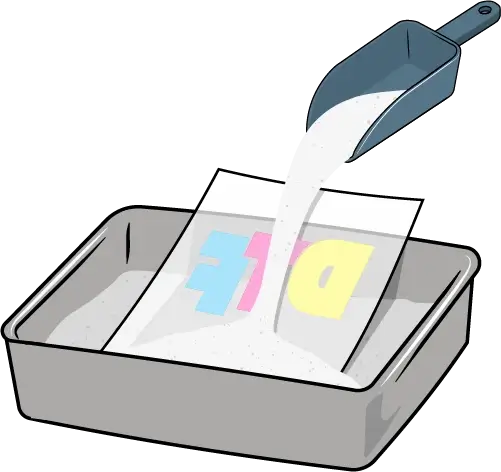

Powder application

Apply Roland DG S-Powder to the still-wet ink, then remove any excess. This can be done manually or with a compatible shaker integrated into the workflow, ensuring even coverage across the entire printed surface.

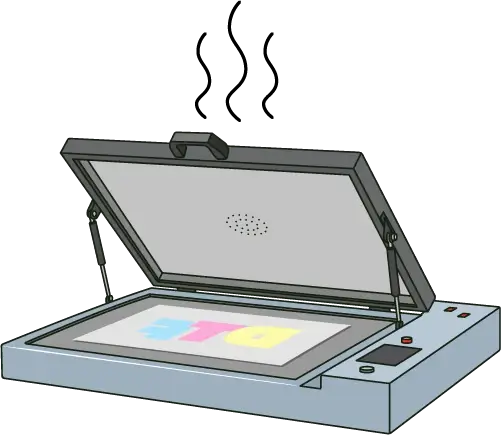

Powder curing

Melt and cure the powder under controlled temperature and time conditions. Using an oven or a shaker with heat extraction and retention functions is recommended to ensure even curing and stable transfer performance.

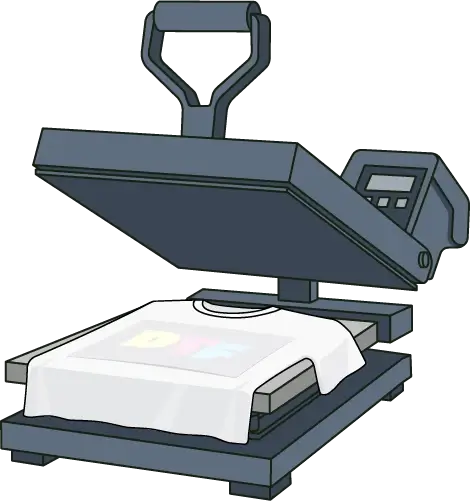

Heat and pressure transfer

Apply the cured film to the fabric using a heat press at the recommended temperature and pressure. A flatbed heat press is recommended, with pre-press, heat press and second-press steps to improve durability and overall finish.

STABLE PRODUCT PERFORMANCE

Reliable continuous printing, with a minimal number of nozzle failures.

LOW OPERATING COSTS

Stable production that reduces cleaning operations, reprints and overall costs.

EXCELLENT PRINT QUALITY

Vivid colours, wide colour gamut, high-density white and sharp detail.

HIGH WASH DURABILITY

Colours and quality maintained for up to 50 wash cycles (cold water, no fabric softener, garment turned inside out).

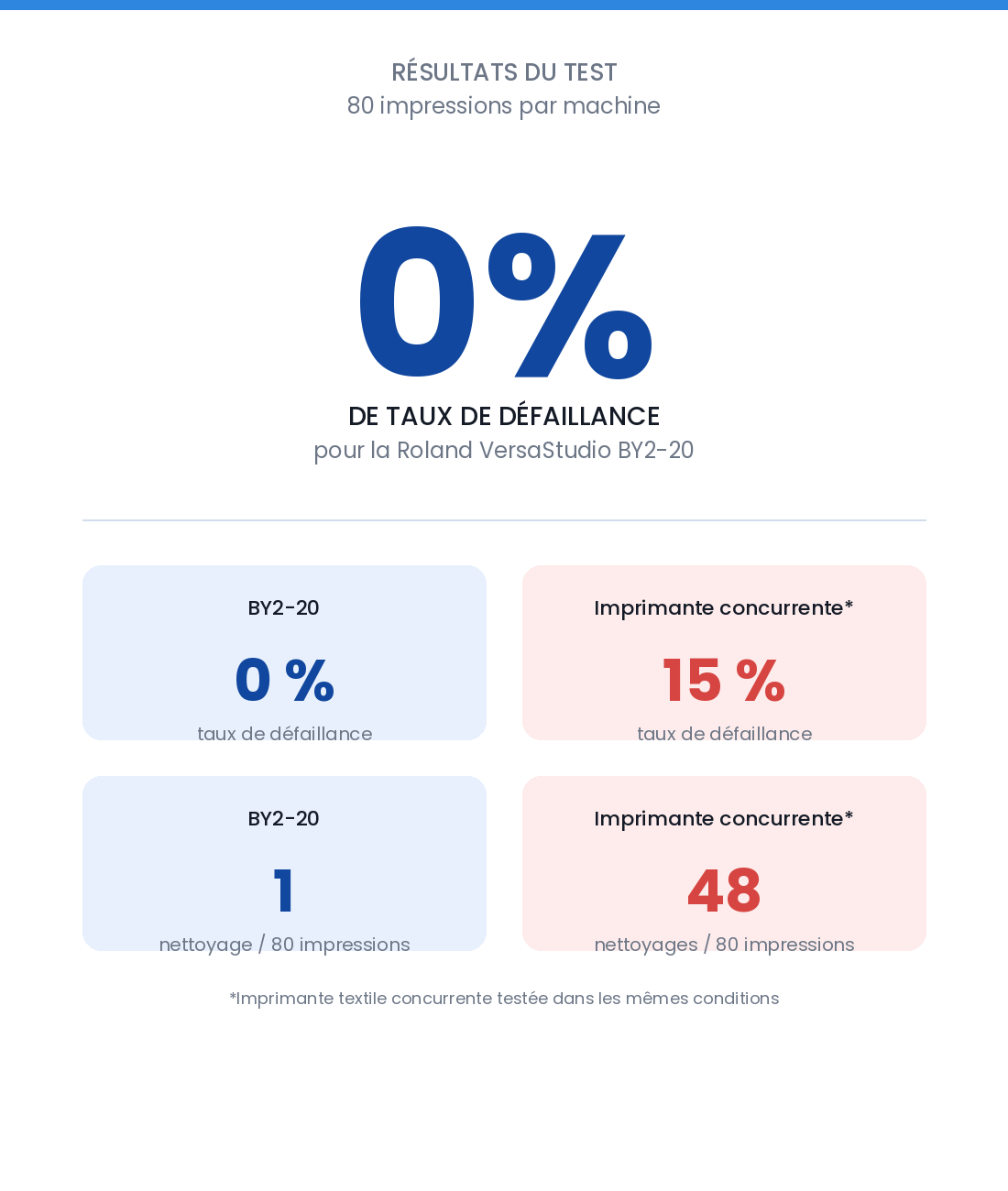

Reliability that's measured, not just claimed

In a short 80-print test, under the same conditions as a competing textile printer:

• 0% failure rate for the BY2-20, compared to 15% for the competing printer tested
• only 1 cleaning required (1%), compared to 48 (60%)
• fewer than 3 missing nozzles per colour tolerated, compared to up to 5 for the competing printer

In a longer, 3-month real-world test: a 100% stable operation rate in standard use (80 days, 23 print runs), and 98% in intensive use (90 days, 52 print runs).

Classic DTF for custom textiles

HTV Print & Cut for printing and cutting heat-transfer designs

Coated media compatible with water-based pigment inks for posters and stickers

SPORTSWEAR

APRONS AND MORE

CANVAS BAGS

HOME DÉCOR

T-SHIRT

Designed to keep you moving

The BY2-20 completely rethinks its internal architecture for DTF production:

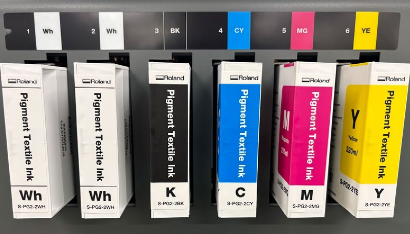

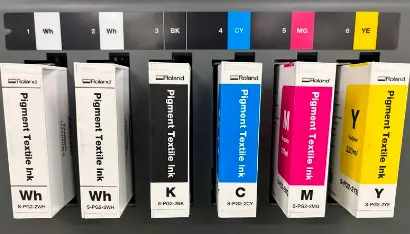

• dual white ink cartridges (220 or 500 ml), redesigned ink circuit for stable pressure
• redesigned internal cooling system, to limit temperature increase during continuous printing
• filters added on each ink circuit, to capture impurities before the print head
• user-replaceable cap and wiper, front-loading, waste ink cartridge

GUIDED CLEANING

Quick start-up cleaning and daily shutdown cleaning, with automatic notification if a step is missed.

AUTOMATIC INK CIRCULATION

White ink circulation runs automatically every 6 hours to keep the ink line maintained.

REMOTE MONITORING

Roland DG Connect lets you monitor the machine and its maintenance remotely.

Consistent, high-qualityresults

Produce sharp, detailed images with accurate colours, strong white coverage and reliable wash durability. Controlled ink application and S-PG2 inks help maintain clarity on very fine lines, small text and intricate details.

The dual white ink system, with its 500 ml cartridges, enables consistent production over longer runs. It helps maintain detail and overall print quality from the very first job through to continuous production.

Reliable production

Maintain the stability of continuous DTF production with controlled ink distribution and consistent print head performance. Improved print stability reduces variation and ensures reliable results over longer runs.

Continuous production support enables stable operation with clear visibility of machine status for every job. Automated maintenance functions help keep your printer production-ready while reducing unnecessary interruptions or reprints.

Optimised workflows

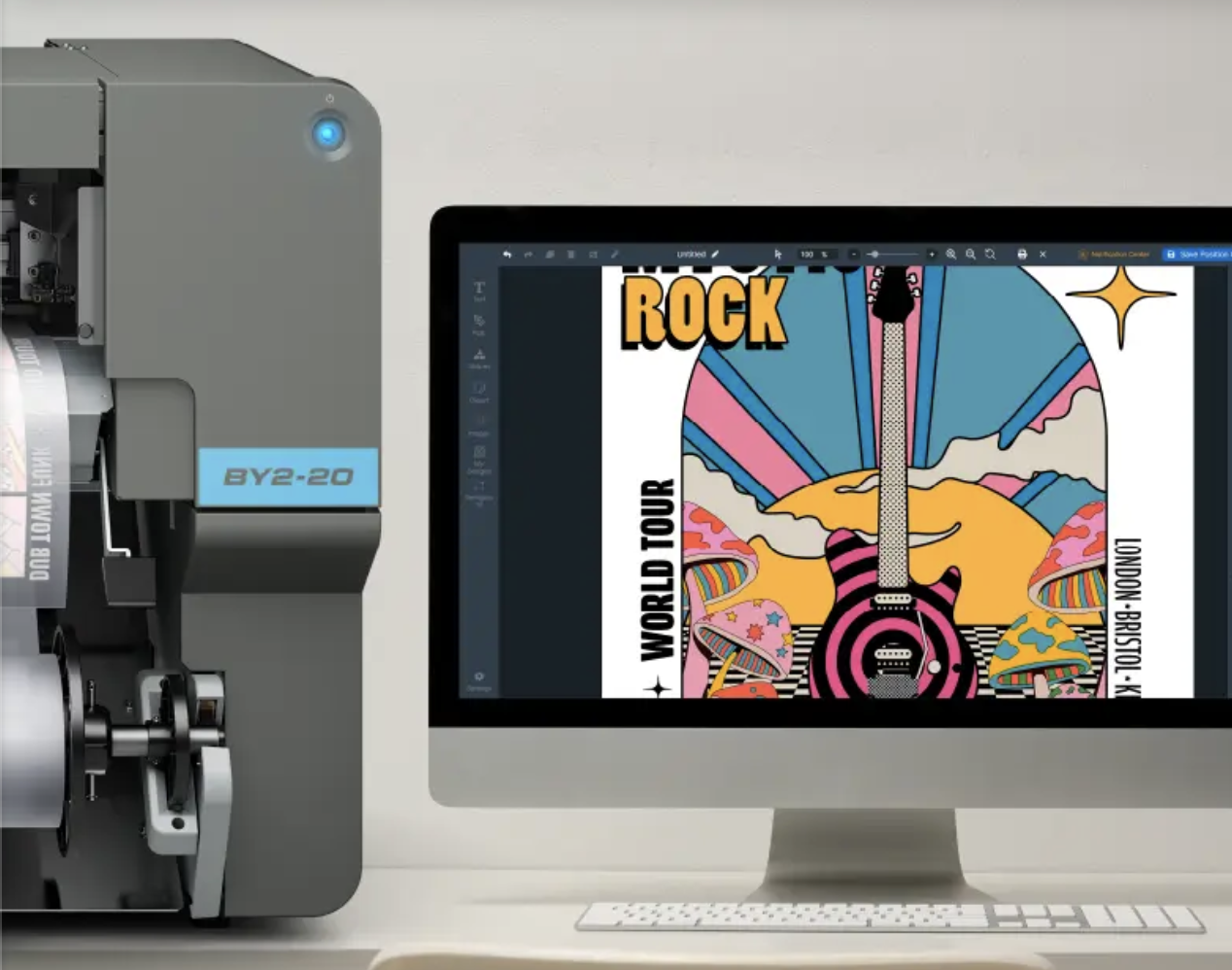

The BY2 brings design, preparation and production together in a single connected DTF workflow. Connect Designer and VersaWorks 7 make precise file configuration easier, including white layer generation and seamless data handling, helping reduce errors before printing.

Simplified controls and software tools make operation straightforward, while automated media adjustment ensures precise alignment and reduces distortion during printing.

DTF and cutting applications

Standalone cutting handles graphics, lettering, numbering and specialty media applications, letting you go beyond DTF into cut-only workflows or hybrid DTF/heat-transfer vinyl (HTV) processes.

Beyond cutting, the BY2-20 produces transfer-ready images for cotton, polyester blends, denim, nylon, rayon and other fabrics, for a wide range of textile and apparel applications.

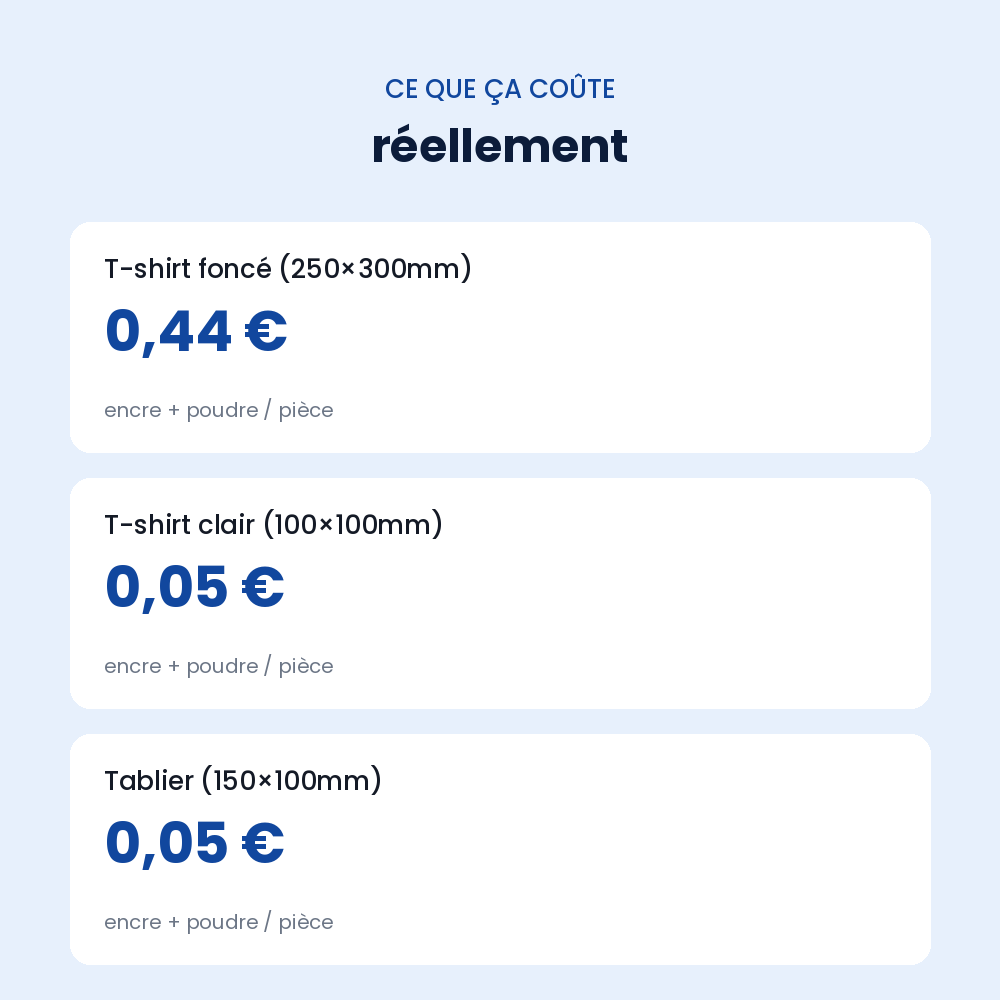

What it actually costs

A few concrete consumption examples (ink + powder, film not included):

• dark fabric T-shirt (250×300mm): approx. €0.44 per piece
• light fabric T-shirt (100×100mm): approx. €0.05 per piece
• light fabric apron (150×100mm): approx. €0.05 per piece

In standard CMYK + White mode, the machine prints up to 8 A4 visuals per hour. S-PG2 inks and S-Powder certified OEKO-TEX® Eco Passport.
