Gravotech Lightspeed 300 CO₂ laser engraver – working area 610 x 305 mm, 30 to 60 W
- Free shipping from 300 €*
- Quick shipping in the whole world
- Certified technical service Quick support
- Custom advices & quotes Secured payment
4 g of acceleration. That's the figure that decides your cycle time, not top speed.
Gravotech claims the LightSpeed 300 is "up to 10 times faster than other laser machines" in its class. Four engineering choices make it happen:
● 4 g acceleration on a reinforced frame — on a logo or a fill, the head never holds its top speed.
● 20 MP G-Eye camera, 360° vision: place the part, drag the design over it on screen, hit start.
● Click Lens and Quick Switch — magnetic lenses and tables, changed without tools.
● Safe and quiet — right into a sales floor open to the public, depending on the configuration ordered.
Supplied with Gravostyle™ and a Gravotech engraving materials starter pack.
More info
Source
CO₂ Ceramicore®
Marking area
610 × 305 mm
Power options
30 · 40 · 50 · 60 W
A choice for the future
What Gravotech rethought
Productivity
3.5 m/s and 4 g of acceleration on a reinforced structure. Interchangeable tables and file management right on the screen: the dead time between two jobs disappears along with the cycle times.
Precision and quality
Path correction, stabilised laser power and constant vector resolution: the engraving is even line after line, and the finished part matches the on-screen preview.
Ease of use
7-inch touchscreen, visual positioning tools, autofocus. Quick to get to grips with, with no needless setup, for a beginner and an experienced engraver alike.
Adaptability
Safe and quiet, it fits in anywhere from the industrial workshop to the office — right through to a sales floor open to the public, depending on the configuration ordered.
Applications
Four markets, one machine
Signage, personalisation, creative work, industrial identification: every customer need becomes one more application.
Signage
Professional plaques · office signs and badges · visual communication
Personalisation
Gifts · cutlery · wines and spirits
Creative
Display stands · decorations, models and craftwork · trophy making
Identification
Nameplates · industrial signage · electrical labelling
Materials
One technology, endless materials
| CO₂ | Cutting | Deep engraving | Marking |
|---|---|---|---|
| Plastics | |||
| Gravotech laser engraving materials | ✓ | ✓ | ✓ |
| PMMA, acrylic | ✓ | ✓ | ✓ |
| Laminates, foam, other plastics | ✓ | ✓ | — |
| ABS | — | — | ✓ |
| Organic materials | |||
| Wood, leather | ✓ | ✓ | ✓ |
| Rubber | ✓ | ✓ | — |
| Paper, cardboard, cork · textiles | ✓ | — | ✓ |
| Glass, crystal · ceramics | — | — | ✓ |
| Stone, granite, marble | — | ✓ | ✓ |
| Metals | |||
| Coated and anodised metals | — | — | ✓ |
Bare metal cannot be engraved with CO₂. Raw stainless steel or steel calls for a fibre source — let's talk it through before the order rather than after.
Features
Performance and quality, in a machine that's easy to live with
G-Eye camera
Instant 360° view of the bed, 20 MP. Place the part, then position the design over it on screen.
Click Lens
Magnetic lens mounting, tool-free and with no risk of misalignment. Four focal lengths from 1.5" to 4".
Quick Switch tables
Five tables — standard, ferromagnetic, cutting, slat, precision. Instant changeover.

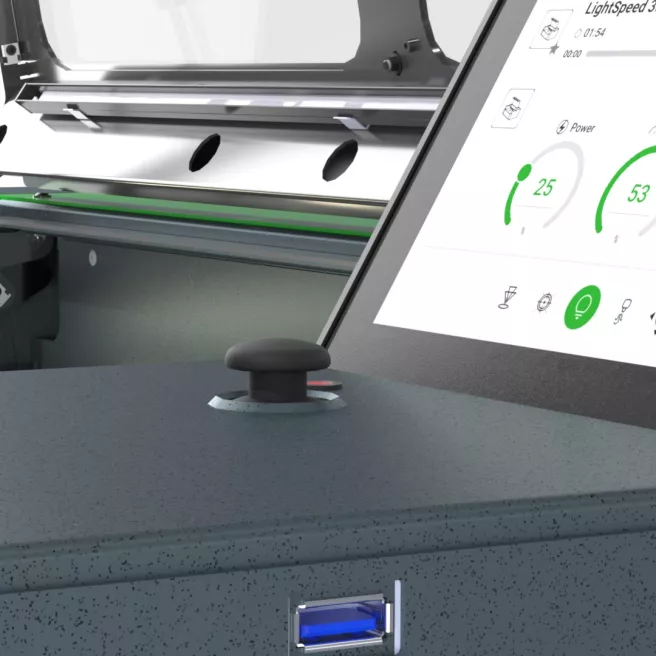

G-Screen & Job Manager
7-inch touchscreen: queue, preview and launch jobs straight from the machine.
Automatic air assist
Controlled air flow during the cycle: cleaner cuts and optics that last.
Print & Cut
Automatic alignment of cuts on printed media.
Point & Shoot & joystick
Full axis control at your fingertips, optimal positioning as standard.
Quiet technology
More discreet with no compromise on performance — which makes it viable right next to a workstation.

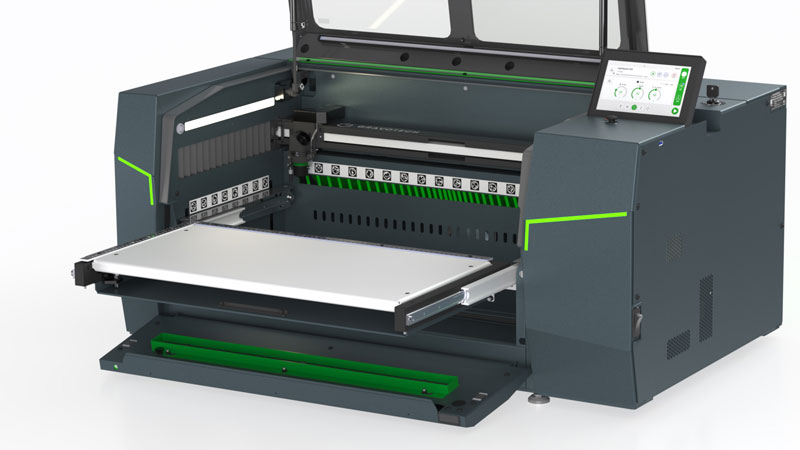

Drawer configuration
Sliding table, unobstructed door opening, chassis optimised for doorways.

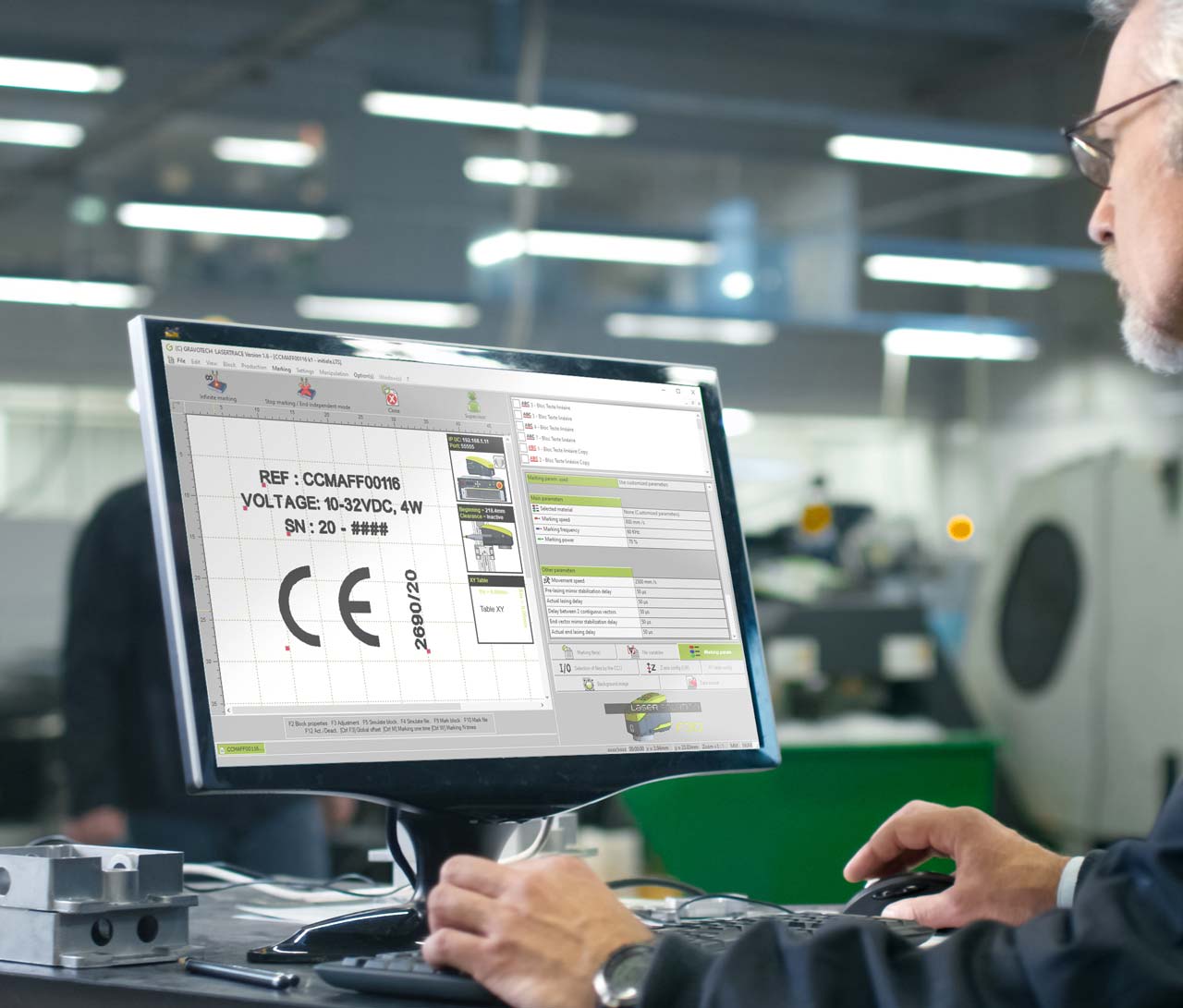

Software
Gravostyle™ 10, supplied with the machine
Three steps, and a library of laser parameters already set up for Gravotech engraving materials.
01 — Create
Text, logos, shapes, barcodes, photographs.
02 — Adjust
Power, speed, focus, running order.
03 — Engrave
Sent to the machine just like to a printer.
Already working in CorelDRAW® or Adobe Illustrator®? The Gravotech driver behaves like a desktop printer: you keep your own design tool.
Technical data
Specifications
| Acceleration | 4 g |
| Power | 30 - 40 - 50 - 60 W |
| Marking area | 610 × 305 mm |
| Speed | CO₂: 3.5 m/s |
| Maximum object weight | 15 kg |
| Maximum object size (L × W × H) | 619 × 332 × 150 mm — max. height without table: 210 mm |
| Laser safety classification | Class 1 / Class 2 — class 4 configuration also available |
| Operating modes | Raster: fill · Vector: outline and cut · Combined: both at once |
| Machine dimensions (L × W × H) | up to 1,067 × 730 × 490 mm |
| Power consumption | up to 600 W |
| Machine weight | from 90 kg |
| Autofocus | Precision mechanical sensor |
| Network connection | USB, Ethernet, Wi-Fi |
| G-Screen | 7-inch touchscreen |
| G-Eye camera | 20 MP wide-angle camera |
| Software | Gravostyle™ included — works with CorelDRAW®, Adobe Illustrator® or any other graphics software |
Beyond the machine
The Gravotech ecosystem
Engraving materials
Gravotech is the originator of Gravoply™ two-ply. Tested plastics, acrylics, metals and woods, with their laser parameters already in Gravostyle™.
Engraving accessories
Colouring and cleaning products, adhesives and fixing systems for signage and badges.
Ready to engrave
Medals, door plates, electrical labels: enough to open up a new offering without designing a thing.
Starter pack included. Every LightSpeed ships with a starter pack of Gravotech's best-selling engraving materials, so you can try them from day one.
What to know before ordering
A laser table is never bought on its own

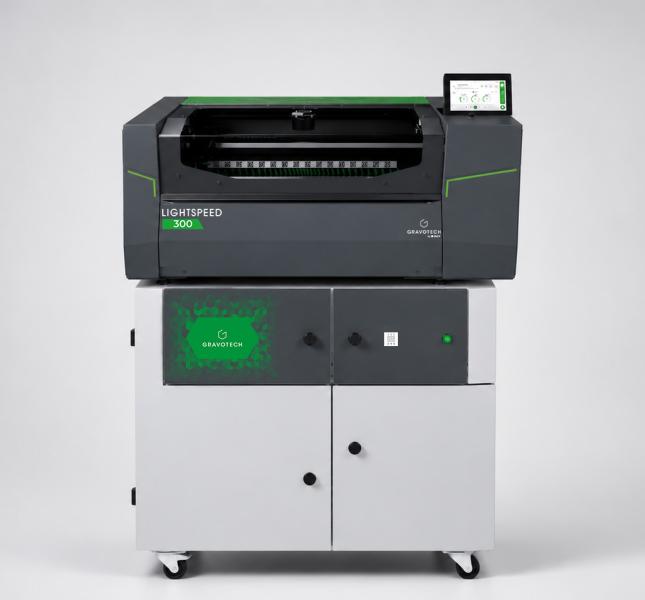

Extraction is not an option
Insufficient airflow means smoke in the workshop, quality that drops and lenses that clog up. Gravotech offers four systems from 200 to 500 m³/h that filter before discharge. We size it with you.
The compressor is fitted at the factory
If your workshop has no compressed-air supply, the compressor is built into the machine during manufacture. To be specified with the order, not afterwards.
The safety class depends on the configuration
The machine is class 1 capable — the configuration that allows installation in an office or a sales area open to the public. A class 4 configuration also exists. If engraving in front of the customer is part of the plan, say so at the quotation stage.
Support and services
What Digital-sys adds
Configuration
Power, class, tables, focal lengths, extraction, compressor: six decisions that change both the use and the budget. We start from the materials you actually run.
Sample test and training
Send us your materials: a test engraving settles it faster than any table. Then commissioning and training on your own jobs.
Ongoing support
Supply of sheets and wear parts, direct technical support, and a line through to Gravotech for anything that has to go back to Rillieux-la-Pape.
Tell us what you engrave
Your materials, your formats, your volumes and where the machine will be installed. We come back with the exact configuration, extraction included.
Request a quote or a demonstration
Digital-sys · Rue du Polissou 23E, B-5590 Achêne · +32 83 23 11 62
Photos are non-contractual. Non-contractual manufacturer document: specifications may be changed without notice.
